Hinowa Spider Platform 3317

Specifications:

Maximum Working Height: 32.6 meters

‍Maximum Horizontal Outreach: 16.5 meters (230 kg capacity) or 14.8 meters (300 kg capacity).

Platform Capacity: 230 kg (standard) or up to 300 kg depending on configuration

Power Options:‍

·     Diesel engine: Kubota D9021.

·      Lithium-ion battery: 19.2 kWh1.

·     Bi-energy option combining diesel and mains power.

Dimensions:

·     Transport Length: 6.5 meters (5.8 meters without basket)

·     Transport Height: Approximately 1.99 meters

·     Width (open/closed undercarriage): 1.2 to 1.7 meters‍

Weight:

·     Diesel version: Approximately 7815 kg

·     Lithium-ion version: Approximately 7835 kg

·     Bi-energy version: Approximately 7955 kg

Basket Rotation: ±90° (180° total)1.

Gradeability: Maximum slope of 16°/28.7% in travel mode1

Travel Speed:‍

·     Diesel version: Up to 1.8 km/h

·     Lithium-ion version: Up to 1.3 km/h

Features:

·      Compact design for maneuverability in tight spaces.

·      Non-marking tracks for indoor and outdoor use

·      Variable stabilization area for enhanced safety and adaptability to uneven terrain (5140x4600mm narrow, or up to 6300x3300mm wide)

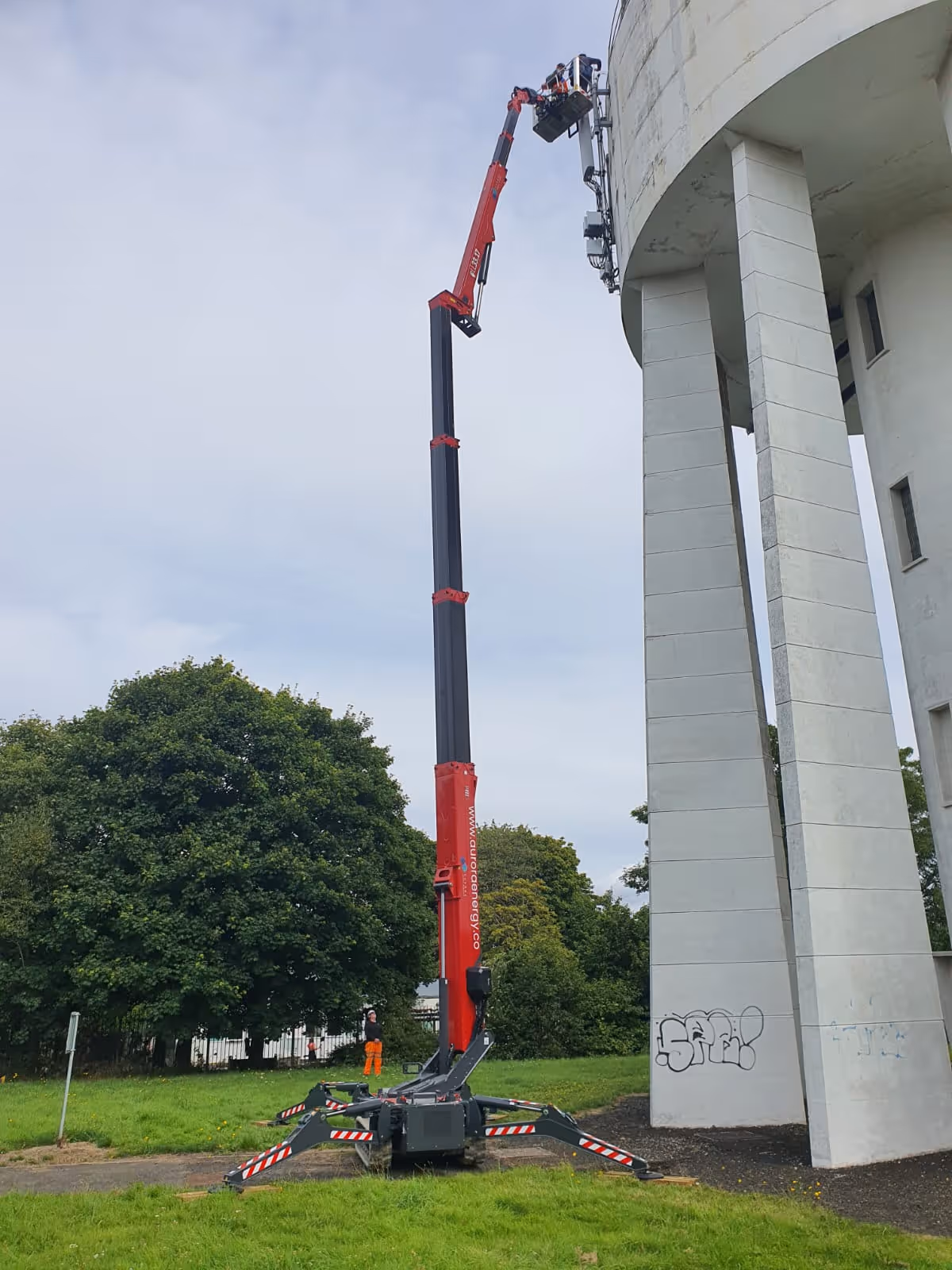

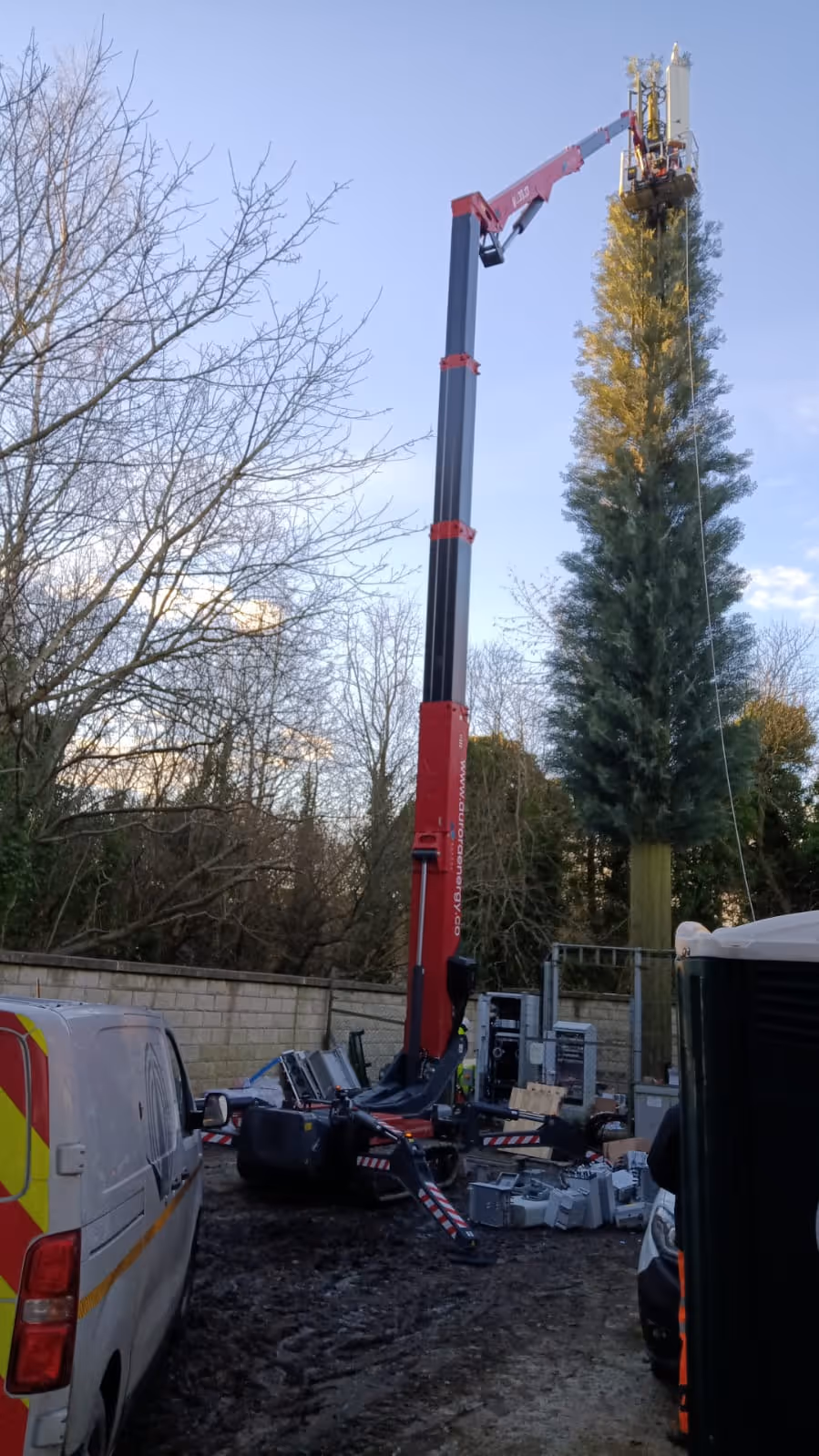

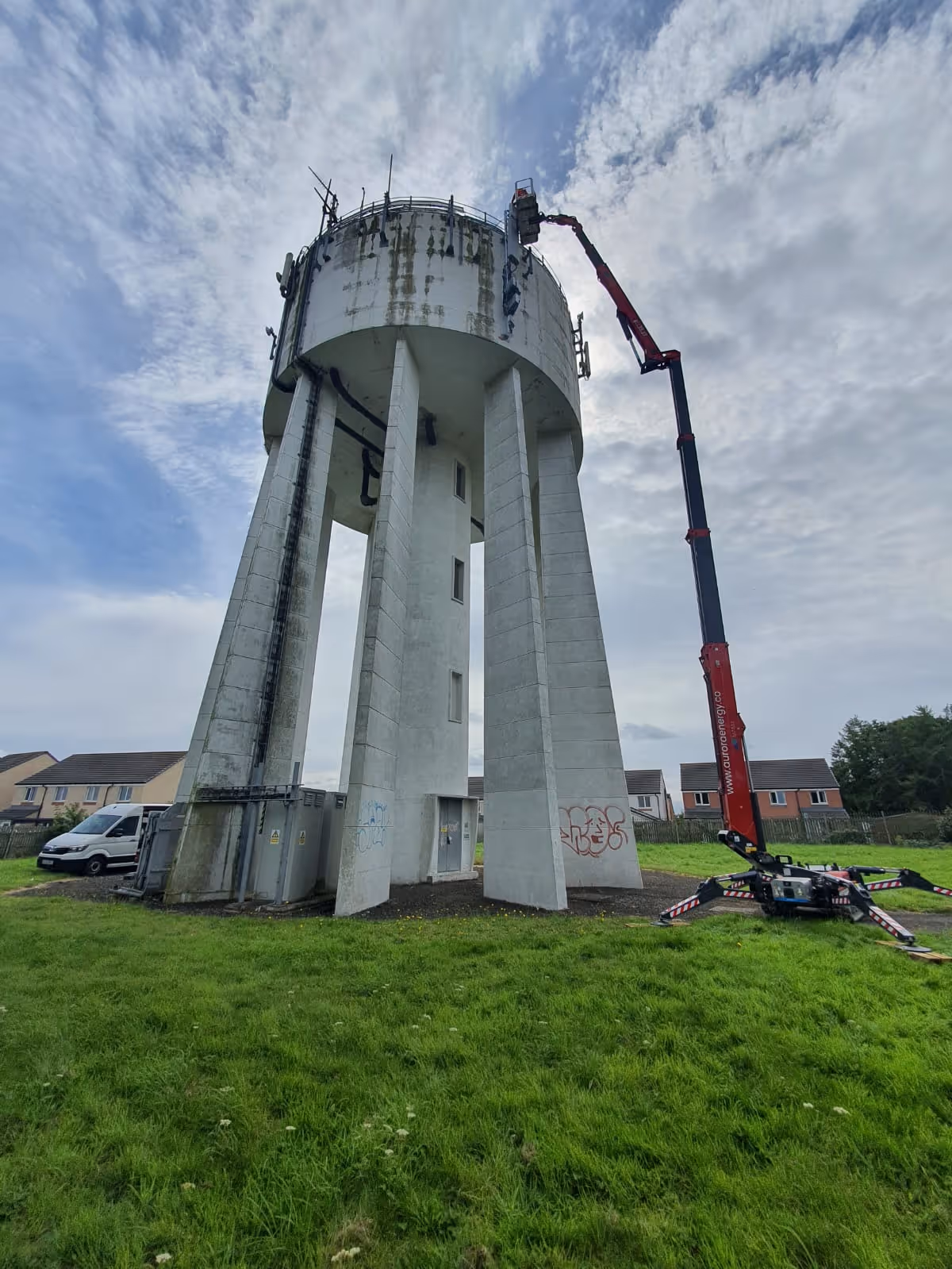

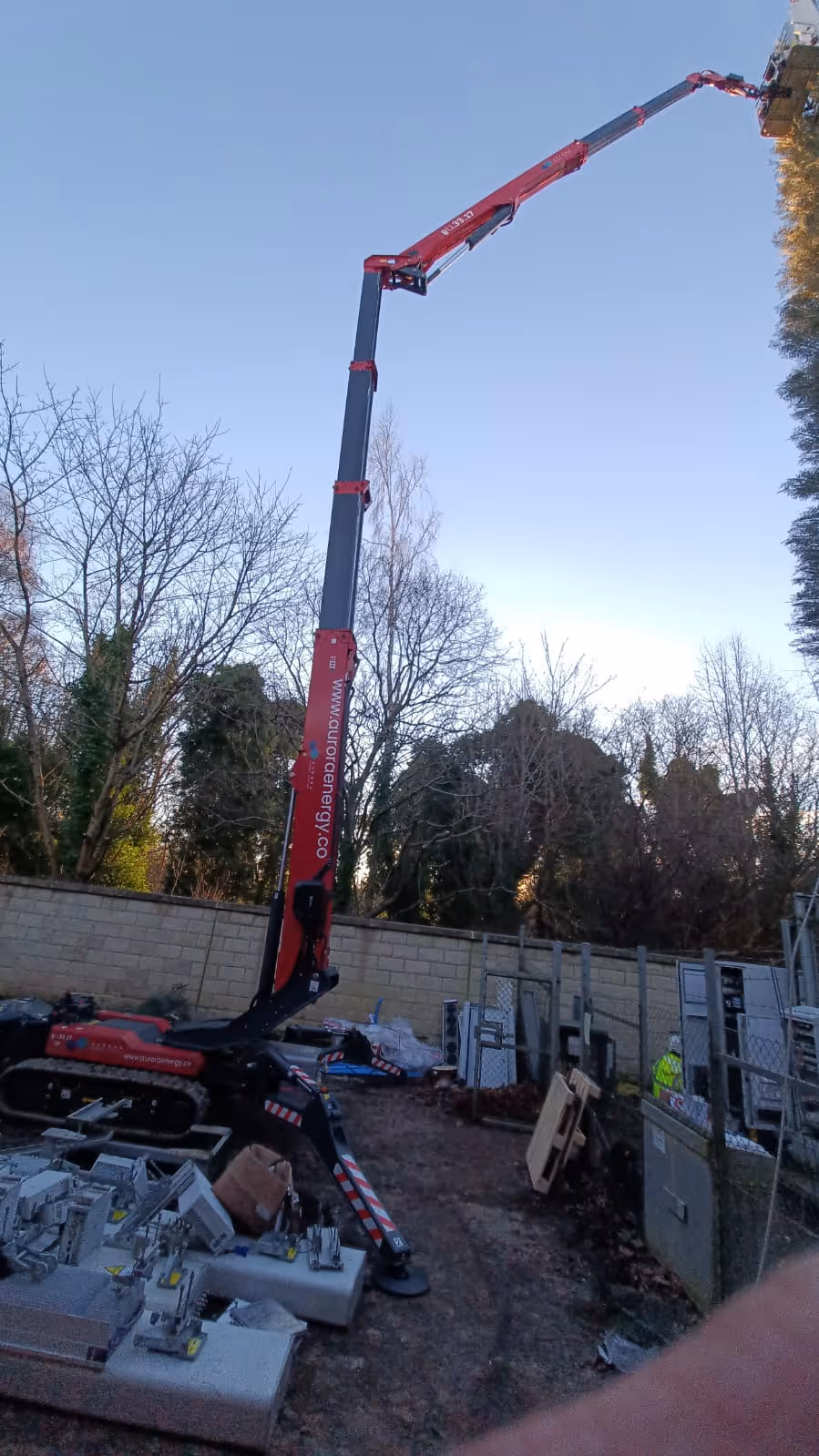

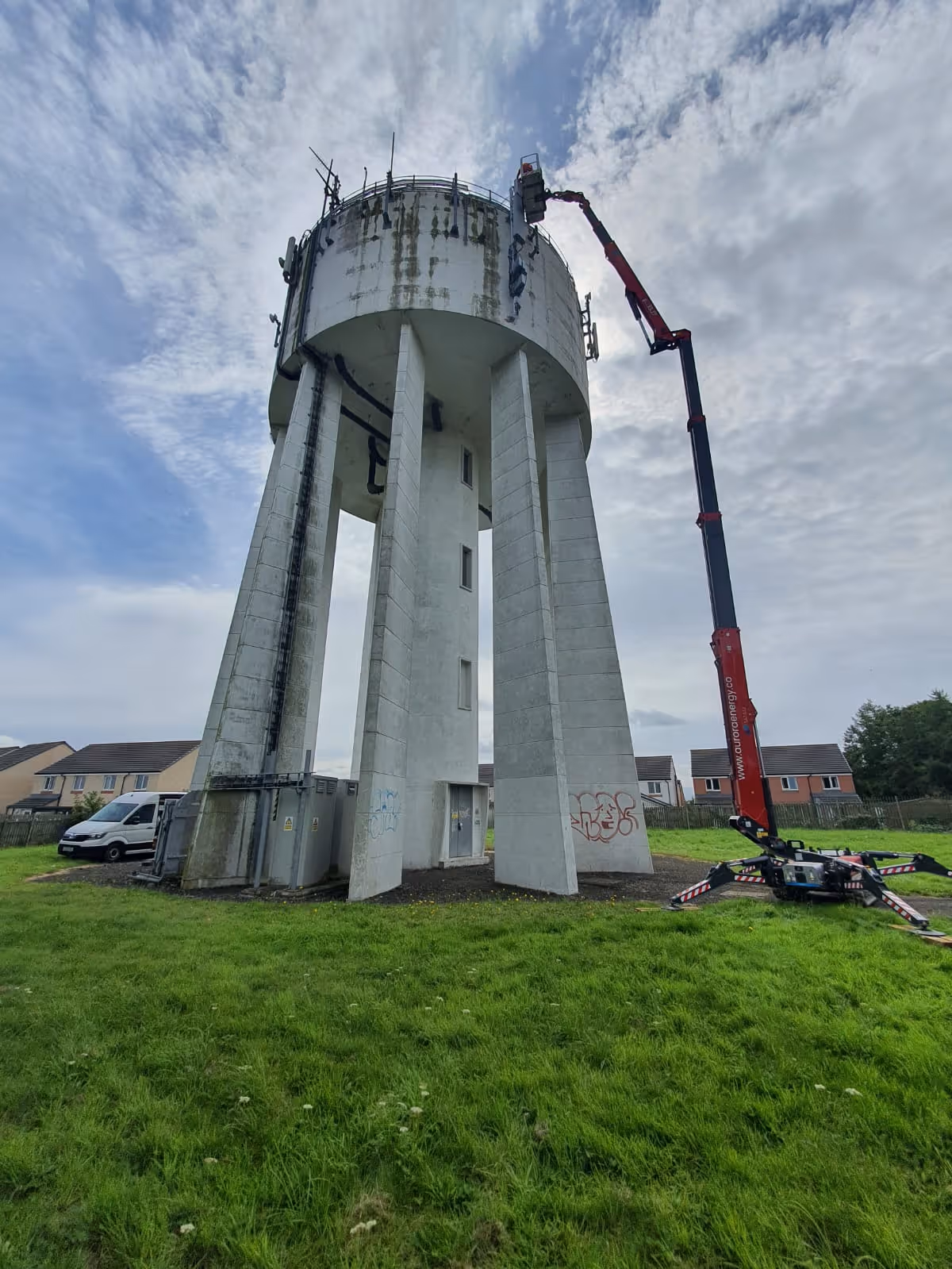

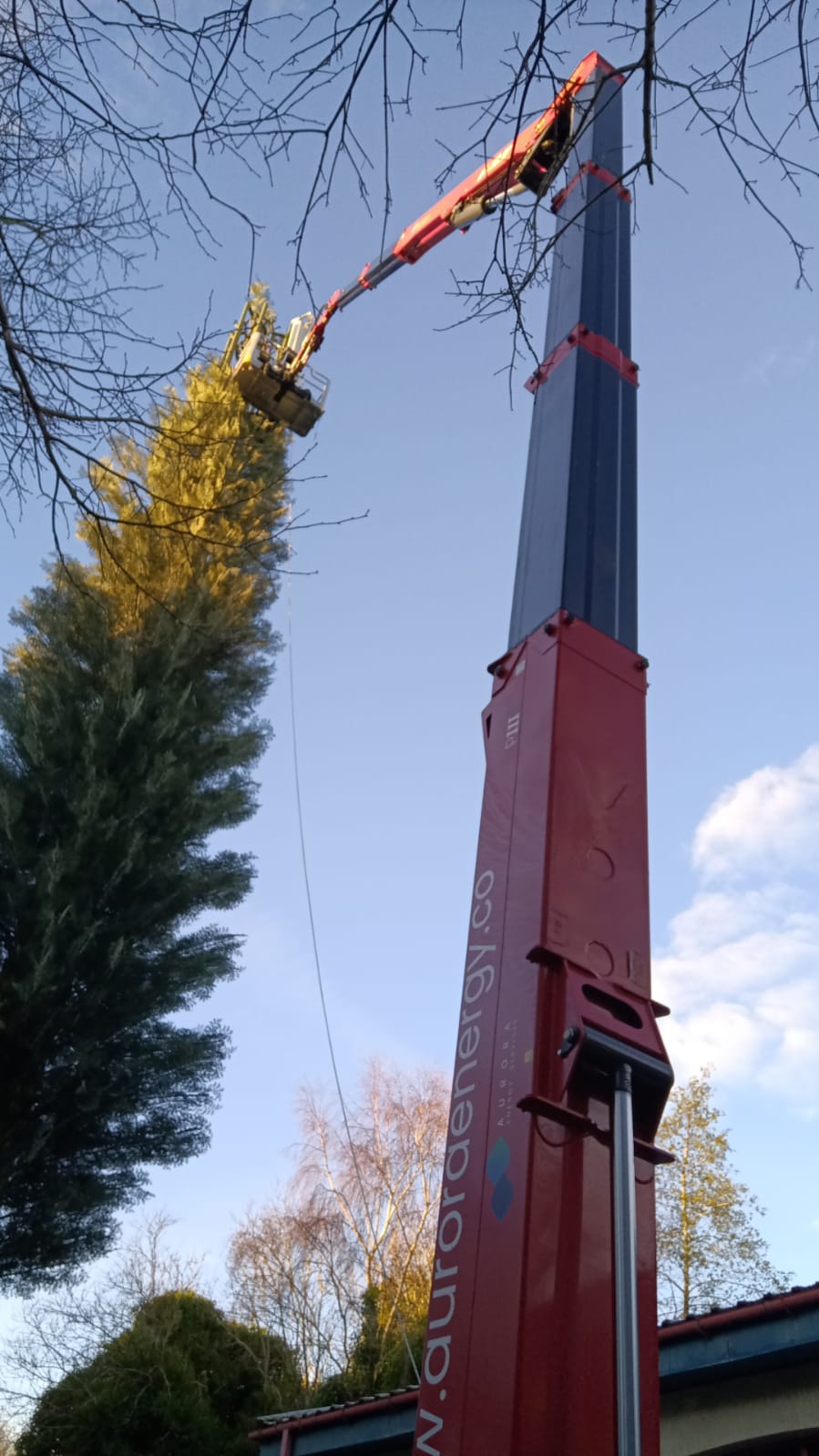

This model is ideal for applications requiring precision and high elevation, such as building maintenance, tree care, and industrial tasks.

‍
